COATING ON MATERIALS

Dew Point Meter NOVOTEST KTR-1

Dew Point Meter NOVOTEST KTR-1 is designed for rapid non-destructive measurement the temperature, humidity, dew point calculation and measurement of the surface temperature by contact method.

Dew Point Meter NOVOTEST KTR-1 allows user to measure:

– air temperature (-20 to + 125 ° C)
– surface temperature (-20 to + 125 ° C)
– relative humidity and calculates:

– dew point temperature
– difference between dew point and surface temperature

Advantages

  • Accurate measurements the parameters of the environment before painting works

  • Minimum number of controls: one button – one function

  • Digital contrast segment display

  • Built-in temperature and humidity sensors

  • Built-in contact sensor for measuring the surface temperature

  • For easy operation dew point meter is equipped with beeper

  • Sound alarm when difference between surface temperature and dew point decreases more than 3 ° C

  • Factory default settings of the device allows to operate without additional calibration

  • Durable two-button membrane keypad

  • Auto power off for increasing continuous operating time

Coating Thickness Gauge NOVOTEST TP-1M

Portable Coating Thickness Gauge NOVOTEST TP-1M – device for operative non-destructive measuring of coating thickness in compliance with ISO 2808 with high measurement accuracy.
Coating thickness gauge is designed to test:

  • thickness of various thick protective coatings on various metals and alloys;

  • thickness of paint and other dielectrics – radioabsorbing, mastic, teflon, plastic, electroplating coatings on steel;

  • thickness of electroplating and paint coatings on non-ferromagnetic alloys and non-ferrous metals;

  • thickness of bitumen and other thick coatings on various metals and alloys;

  • as well as relative humidity, air temperature, surface temperature, dew point temperature and difference between surface and dew point temperatures, estimate the depth of grooves and the surface roughness

Electronic thickness gauge – device which widely used in shipbuilding and automotive industries for measuring of the thickness of paint, in order to test the quality of products, also it used for determining technical condition of the tested objects.

Advantages

  • Large thickness measurement range

  • Convenience and ease in operation

  • Shockproof case

  • Minimum number of controls: one button – one function

  • Graphical display with backlight

  • Automatic recognition of probe

  • Indication of the connected probe type

  • Control of batteries

Coating Thickness Gauge NOVOTEST TP-1

Portable Coating Thickness Gauge NOVOTEST TP-1 – device for operative non-destructive testing of coating thickness in compliance with ISO 2808 with high measurement accuracy.
Coating thickness gauge is designed to test:

  • thickness of various thick protective coatings on various metals and alloys;

  • thickness of paint and other dielectrics – radioabsorbing, mastic, teflon, plastic, electroplating coatings on steel;

  • thickness of electroplating and paint coatings on non-ferromagnetic alloys and non-ferrous metals;

  • thickness of bitumen and other thick coatings on various metals and alloys;

  • as well as relative humidity, air temperature, surface temperature, dew point temperature and difference between surface and dew point temperatures, estimate the depth of grooves and the surface roughness

Electronic thickness gauge – device which widely used in shipbuilding and automotive industries for measuring of the thickness of paint, in order to test the quality of products, also it used for determining technical condition of the tested objects.

  • Large thickness measurement range

  • Convenience and ease in operation

  • Minimum number of controls: one button – one function

  • Graphical display with backlight

  • Automatic recognition of probe

  • Indication of the connected probe type

  • Control of batteries

Coating Thickness Knife Tester NOVOTEST TPN-2808

Coating Thickness Knife Tester NOVOTEST TPN-2808 (Paint Inspection Gauge) is designed to measure the thickness of both single and multiple layer coatings on any grounds, both metallic and non-metallic. The operation principle is based on the local cut (notch) of the coating at the tested place of object with following thickness measurement of this coating. The thickness of coating is determined by the width of notch, it is possible because of the special form of cutter of the instrument. The measurement is performed by any portable measuring microscope with a suitable measuring range and discreteness.



Coating Thickness Knife Tester NOVOTEST TPN-2808 (Paint Inspection Gauge) complies with  ISO 2808, ASTM B 4138, DIN EN 1071-2.

Pinhole Detector NOVOTEST ED-3D

NOVOTEST ED-3D Pinhole Detector was designed for rapid non-destructive testing of the continuity of coating (e.g. porosity of film) with thickness up to 500mkm according to ASTM G62-A.


Pinhole Detector is designed for testing the porosity of partially painted places and other discontinuities of protective dielectric coatings on metal products by putting low voltage through a sponge which is soaked in a liquid electrolyte with high penetrating properties.

  • Fully ready to use

  • Automatic calibration and voltage checking

  • Low battery indicator

  • Visual and audio alarms

  • Wide range of interchangeable probes

  • Universal model with three voltage value

  • Easy to connect/disconnect cables with protection of crooking

  • Big standard sponge

Pulse Holiday Detector NOVOTEST SPARK-1

Pulse Holiday Detector NOVOTEST SPARK-1 designed to detect pits, flaws, and holes in different non-metallic insulation coatings (such as polymers, epoxy, bitumen, etc.) and is mostly used for oil and gas metal pipelines and other objects. The device can be used while the pipeline construction, operation or service. Tested coating thickness is up to 12 mm. Such tests are needed to evaluate the oil and gas pipelines corrosion protection reliability.



The Device complies with ASTM G62-07, NACE RP0274-2004, NACE RP0490-2007, NACE SP0188-2006, ASTM D4787-08, ANSI/AWWA C214-07, ANSI/AWWA C213-07, ISO 2746:1998 & AS3894.1-2002.

  • Reliability

  • Small size and lightweight

  • High capacity batteries

  • Long battery life with enhanced battery

  • Accurate digital voltage and sensitivity settings

  • Preset settings

  • Indicator of batteries charge

  • Sound and light defects signal



How it works. The device registers high-voltage shortcuts between two electrodes, that are connected to the high-voltage source and the metal pipe (or other testing objects).



For different tasks, the device supplies with a set of different shapes and of different materials electrodes.

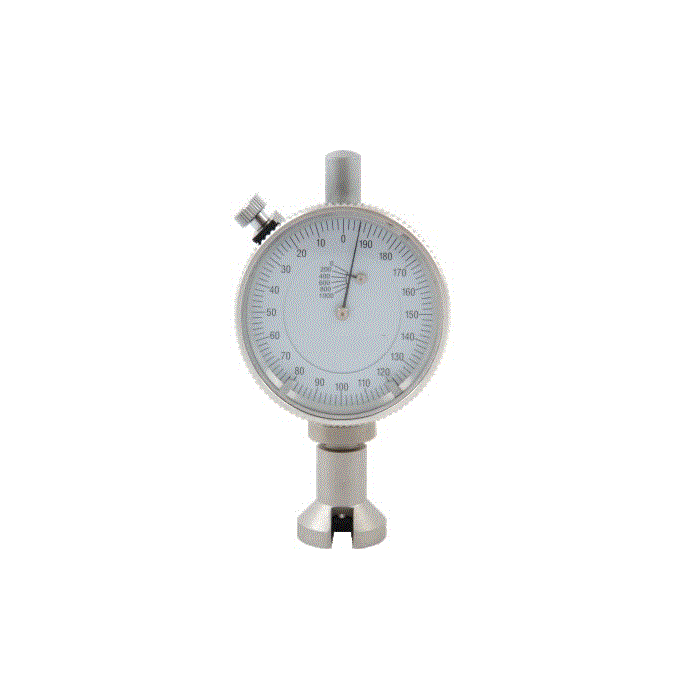

Analog Surface Profile Gauge NOVOTEST LIMIT

Description:

Mechanical depth gauge of focal corrosion.



Application:

Mechanical depth gauge is designed to comply with ASTM D 4417-B, SANS 5772, US Navy NSI 009-32, US Navy PPI 63101-000 for (depending on configuration): measures the peak-to-valley height of a blast cleaned surface; measurement the depth of focal corrosion; measures depth of narrow holes and grooves.

  • Simplicity of design

  • Ease of operation

  • The construction of the mechanical depth gauge makes it durability in operation

  • The device allows user to solve a large number of tasks

Digital Surface Profile Gauge NOVOTEST SP-1

Digital Surface Profile Gauge NOVOTEST SP-1 is designed for profile measuring on either flat or curved surfaces. Also it can be used for measurements of surface roughness (Rz), after abrasive blasting pre-painting work.



The electronic unit is the same as Coating Thickness Gauge NOVOTEST TP-1.



NOVOTEST SP-1 consist of electronic block of Coating Thickness Gauge NOVOTEST TP-1 and probe DSH.

  • Convenience and ease in operation

  • High measurement accuracy

  • Minimum number of controls: one button – one function

  • Graphical display with backlight

  • Control of batteries

Film Applicator NOVOTEST AU-823

Film applicator AU-823 is designed for applying layers of paint and other materials of required thickness of the layer during the complex tests according to ASTM D 823-E.

User can set the height of the gap by micrometer heads at the range of 10-6000 µm. The height of the gap should provide the necessary thickness of the layer of paint film. The applicator is to be placed on the edge of the test plate, than pour necessary amount of tested material  in front of the gap and move the applicator along the plate at constant speed of 5-10 cm/s, dispensing  continuous layer of the tested material on the plate

  • High accuracy of the instrument

  • Durability and easy in operation
