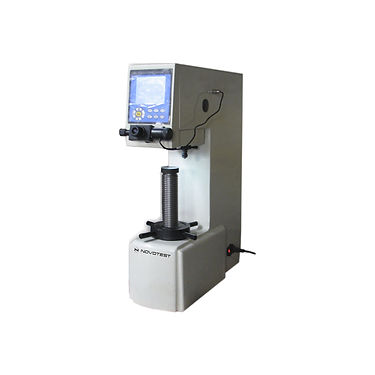

Digital Brinell Hardness Tester NOVOTEST TB-B-CM

Brinell hardness tester is applicable for:

  • hardness testing of metal products by the Brinell scale;

  • hardness testing of metals with different properties from steels (non-ferrous metals, alloys, cast iron, etc.) without additional calibrations;

  • quality testing of heat treated metal parts;

  • verification of calibrational hardness tests blocks;

  • calibration of portable hardness testers.

​

Digital Brinell hardness tester provides automatic electronically controlled sample load, which allows user to simplify operations with the device, and significantly increases the accuracy and productivity of testing. Bench Digital Brinell Hardness Tester NOVOTEST TB-B-CM has high measuring accuracy, wide range of applicability in measurements, automatic loading, automatic timing and automatic unloading.
Brinell Hardness Tester NOVOTEST TB-B-CM is designed for hardness testing of metal products by the Brinell scale (non-hardened steel, cast iron, non-ferrous metals and bearings of soft alloy), device also suitable for testing harder metal materials and hardened steels.
Digital Brinell Hardness Tester NOVOTEST TB-B-CM complies with ISO 6506-2 and ASTM E10.

Advantages

  • 10 test loads

  • Has a function of loading the time of exposure, and it also has a setting of more accurate load

  • Easy to change the hardness scale

  • Automatic controlling the force of load

  • Ease in operation

  • Measurement accuracy is according to ISO 6506-2 and ASTM E10

Specifications

Brinell scale                                                      HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250,HBW5/750, HBW10/100,                                                     HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000

Testing force                                                     62.5kgf(612.9N), 100kgf (980.7N), 125kgf 1226N), 187.5kgf (1839N), 250kgf (2452N),                                                                               500kgf (4903N),750kgf (7355N), 1000kgf (9807N), 1500kgf (14710N), 3000kgf (29420N)

Standards                                                          ISO 6506-2, ASTM E10

Measuring range                                        80-650 HB

Minimum size of testing products                0.005 mm

Microscope zoom                                            20X

Output of data                                                 Built-in printer; RS-232 interface.

Measuring time                                               5~60 sec

Dimensions                                                      550*210*750 mm (L*W*H)

Net weight                                                      125 kg

Max height of test sample                             230 mm

Max depth of test sample                              135 mm

Power supply                                                   220V±5%, 50~60Hz

Standard Package

  • Bench Hardness Tester NOVOTEST TB-B-CM

  • Measuring microscope

  • Ball indenters (2.5, 5 and 10 mm)

  • Large flat table; small flat table; V-shaped table

  • Brinell hardness tests blocks (3 pcs.)

  • Power supply

  • Supply cable

  • Operating manual

< BACK
Available Options

  • Indenters

  • Standard hardness tests blocks

  • Microscope

  • Other power supply

Hardness testers can be beefed with a system of scanning of imprints and thus it upgraded to a hardness tester with automatic measurement of the diameter of imprint and display the hardness value (without using the conversion table)
